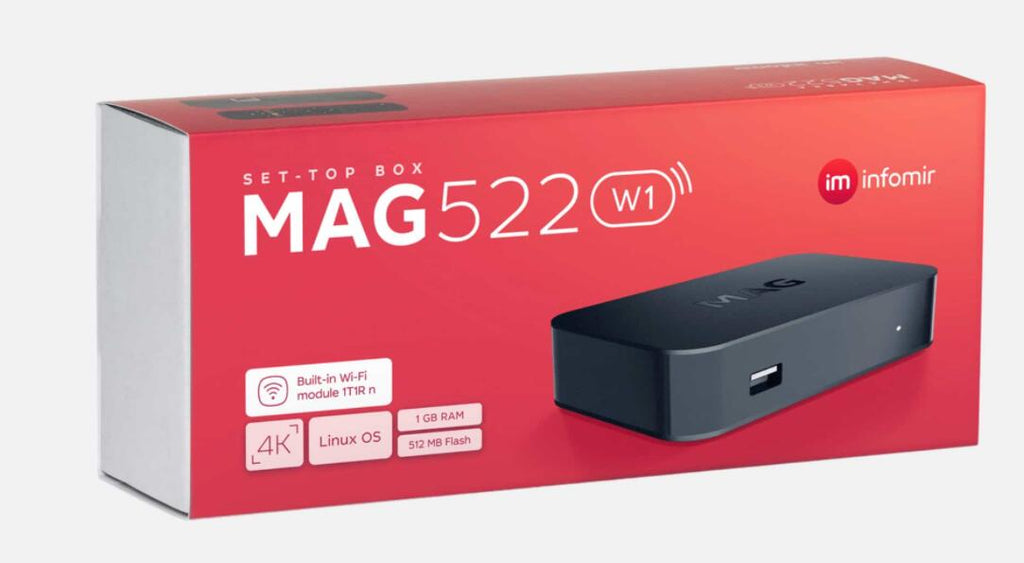

NEW 2021 Model MAG522W1 by INFOMIR MAG 522 W1 IPTV Set-Top-Box Built in wifi+HDMI
NEW 2021 Model MAG522W1 by INFOMIR MAG 522 W1 IPTV Set-Top-Box Built in wifi+HDMI NEW 2021 Model MAG522W1 by INFOMIR MAG 522 W1 IPTV Set-Top-Box Built in wifi+HDMI

NEW 2021 Model MAG522W1 by INFOMIR MAG 522 W1 IPTV Set-Top-Box Built in wifi+HDMI

$146.66 $199.00

NOTE: This listing is for the product only. We do not provide any TV Channels, Subscriptions or any other Audio/Video Content. MAG522w1  can be connected to all modern...

In stock

TV Boxes

$146.66

NOTE: This listing is for the product only. We do not provide any TV Channels, Subscriptions or any other Audio/Video Content.

MAG522w1  can be connected to all modern TVs, home theatres, and audio systems with HDMI inputs. The media players play TV shows, VoD, and other content from IPTV/OTT providers as well as files from external media and the local network.1 By using these devices, operators can launch services offering high-quality high-definition content, reliable technical support, and unique UI/UX. The set-top box offers a built-in 1 GB RAM and a 1T1R n Wi-Fi module.



Linux 4.9: get the best user experience

MAG522w1 and MAG522w3 can operate without rebooting for several months. Linux OS enables operators to customize the UI and develop bespoke applications.

Powerful Amlogic chipset

The MAG522w1 and MAG522w3 set-top boxes are 25% more powerful than their predecessors thanks to an Amlogic S905X2 chipset and ARM Cortex-A53 CPU.

Branding options for cases, remote controls, packaging, and software

Upon request, Infomir can customize the UI and software as well as apply logos on set-top box cases, remote controls, and packaging.

Built-in HEVC and 4K technologies

The set-top boxes easily and smoothly play content in the most popular modern formats including 4K at 60 fps.2 HEVC codec support means the devices can play high-definition content at slow Internet speeds.

API for integrations

Our API has been specifically created for easy integration of content protection systems and software development. Operators develop applications using our documentation. These can be web pages using HTML, CSS, and JavaScript.

Through eight-channel sound technology, we enable users to connect media players to modern audio systems, home theatres, and TVs.3





Compatible accessories



  • MAG522w1
Dimensions
Width/depth/height, mm 132x87x26
Weight, g 125
Hardware
Chipset Amlogic S905X2
Processor Quad-core ARM Cortex-A53, 1,900 MHz
Performance 18,400 DMIPS
RAM 1 GB
Flash memory 512 MB NAND
Software
Operating system Linux 4.9
DRM option Upon request
Middleware supported Pre-integrated Ministra TV platform from Infomir. Image enhancement with operator’s applications, customization, or full replacement is available.
Interfaces
  HDMI 2.1, 100 Mbps Ethernet, built-in 1T1R n Wi-Fi module, USB 2.0 x 1
Sources of media content
  PC or NAS, multimedia broadcasts, USB devices
Audio & video
Audio сodecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optionally), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captioning
Playlist formats M3U, M3U8, PLS, CUE
Standard set
  MAG522w1 set-top box, user manual, HDMI cable, 12 V 1 A power adapter, remote control, 2 AAA batteries, and packaging
